Sensors
PIR Sensor
PIR occupancy sensors for corridors, stairs and utility areas.
AVAILABLE MODELS

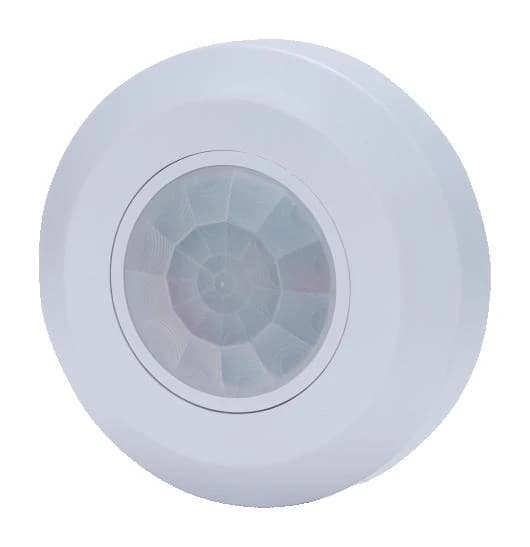

LL-103
- Detection range: 360°
- Detecting distance: 0–5m
- Output: 100W
- Installation height: 2.2–4m
- Ambient light: 3–2000 (adjustable)

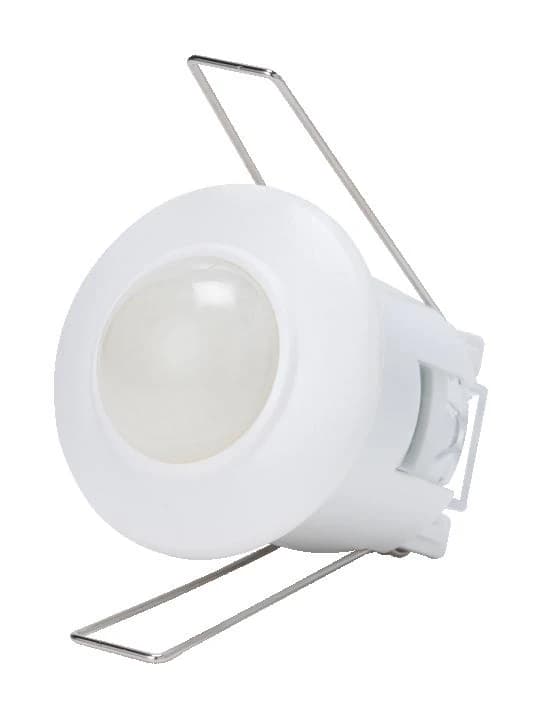

LL-104
- Detection range: 360°
- Detection distance: 6m max
- Rated load: 800W (incandescent) / 400W (LED)
- Time delay: 10s ±3s
- Installation height: 2.2–4m

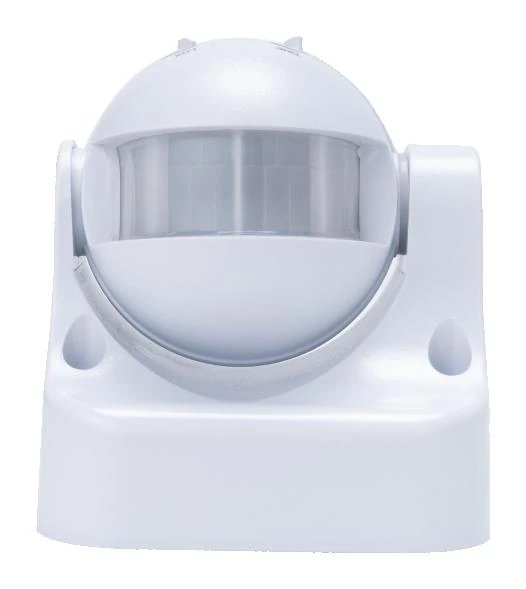

LL-105
- Detection range: 180°
- Detection distance: 12m max
- Time delay: 10s ±3s to 8min ±2min
- Rated load: 1200W (incandescent) / 300W (LED)
- Installation height: 1.8–2.5m
KEY FEATURES
- Power source: 220–240V AC
- 360° / 180° detection range
- Works with incandescent, LED, CFL and fans
APPLI CATIONS
HomesOfficesConference RoomsBanksHospitalsReception AreasCorridorsRetail
